At S & H Glenco Manufacturing, LLC, we are a well-established provider of screw machining services. Since 1957, we’ve been providing precision manufacturing that is cost-effective, consistent, and reliable.

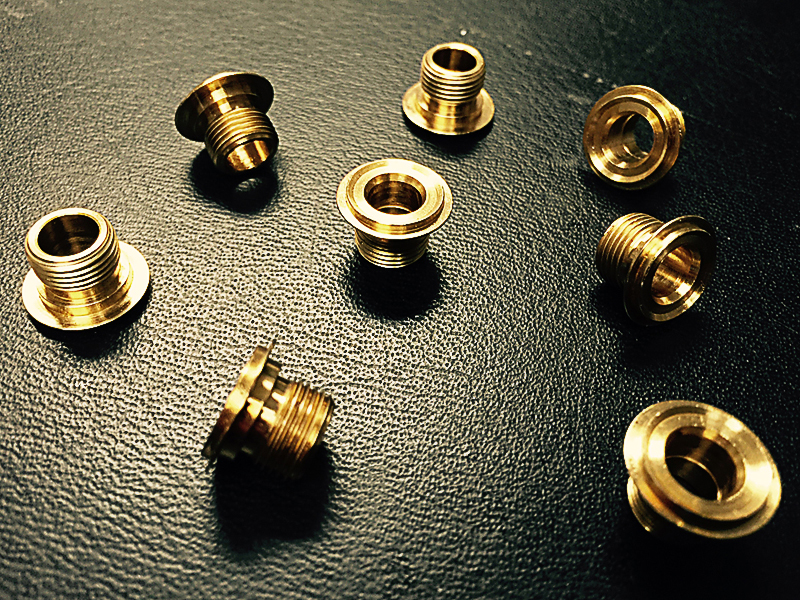

Many of our projects, such as the one highlighted here, demonstrate our ability to fabricate precision products in large volumes. In this example we were contracted to produce a front bushing used in automotive and aerospace applications, at a volume of 500,000 annually. This part, measuring 0.368″ long and 0.557″ in diameter, would have to be made consistently using a fast, efficient, and high quality process based on customer-provided CAD drawings.
We elected to use our standard screw machining approach along with a deburring step and a nickel plating process, which the customer’s design required. Free cutting Brass-Copper alloy no. 360 was chosen as the build material, owing to its good strength profile and its ability to cut accurately. Nickel plating was done using RoHS-compliant Electrode deposited Nickel Plate with a bright finish, ensuring that a good layer of protection would result without inflating dimensions. Maximum tolerances were ±0.002″.
We continue to be a major precision manufacturing leader, providing a complete fabrication solution that does not compromise on volume, speed, quality, or precision of manufacture. Feel free to contact us directly to learn more about our services.
FRONT BUSHING PROJECT HIGHLIGHTS
- Project Name & Description
- Capabilities Applied/Processes
- Overall Part Dimensions
Ø 0.557″ x 0.368″ Length
- Tightest Tolerances
- Material Used
Free Cutting Brass Copper Alloy No. 360
- Material Finish
RoHS Compliant Electrodeposited Nickel Plate, Bright Finish
- Industry for Use
- In Process Testing/Inspection Performed
Dimensional Inspection, Visual Inspection
- Delivery/Turnaround Time
- Delivery Location
- Standards Met
CAD Drawings, Customer Specifications
